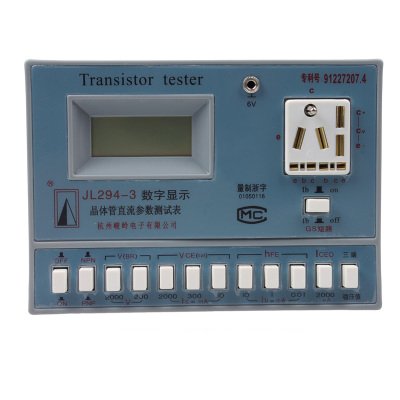

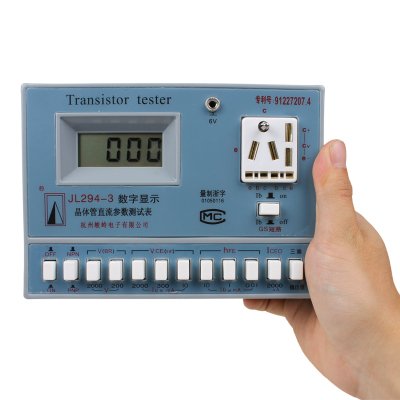

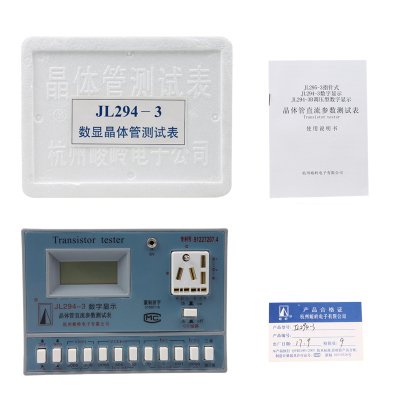

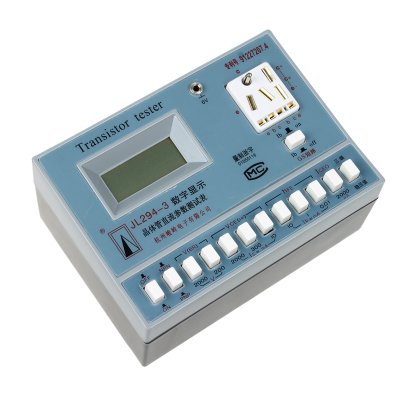

JL294-3 Transistor Tester

JL294-3 Transistor Tester Product Features:

• Power supply: DC 6V%5 (single power supply)
• Power consumption: 3A
• Display: 0.5 inch LCD LCD
• Dimensions: 162 × 115 × 80 (mm)
• Total weight: 500g (without battery)
• VBR measurement range: 0 ~ 199.9V / 0 ~ 1999V
• Resolution power: 0.1V / 1V
• VCE (sat) measurement range: 0 ~ 6.00V
• Resolution power: 0.01V
• hFE measurement range: 0 ~ 199.9 ~ 1999
• Resolution power: 0.1 / 1
• Iceo measurement range: 0 ~ 1999uA
• Resolution power: 1uA
• Three-terminal regulator measurement range: 0 ~ 24.0V
• Resolution power: 0.1V
• Basic error: 2.5% range (humidity 75%)
