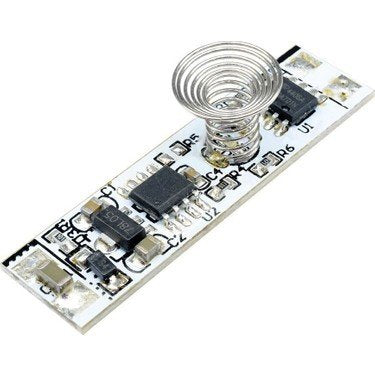

Capacitive Touch LED Driver Module with Helical Spring Sensor

Capacitive Touch LED Driver Module DC 9-24V 3A 30W LED Driver with Helical Spring Capacitive Sensor 12V LED driver circuit with capacitive sensing sensor. It can operate from under a thin protective surface. There is one LED indicator light in the section where the touch sensor springs are located. This LED is for determining the exact position of the capacitive touch. For this reason, the part of the box where the button will be located must be transparent enough to allow light to pass through. It can operate with a power supply between DC 9-24V. However, it is recommended to use it with 12V. It can be used with products such as LED strips. It has the feature of turning the output load on and off. Features: Note:

• Input voltage: DC9V-24V (12V recommended)
• Output power: 30W (Max)
• Standby power consumption: 0.1 W
• Load current: 3A (Max)
• Standby current: 10-15mA
• Operating temperature: -25C 85 °C
• Output frequency: 32KHZ
• Size: 40mm x 10mm x 1.2mm
• Touch sensing function may be affected by electromagnetic signals.
• 1 Piece Capacitive Touch LED Driver Module
