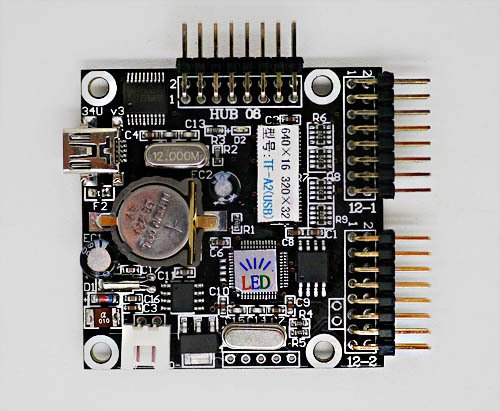

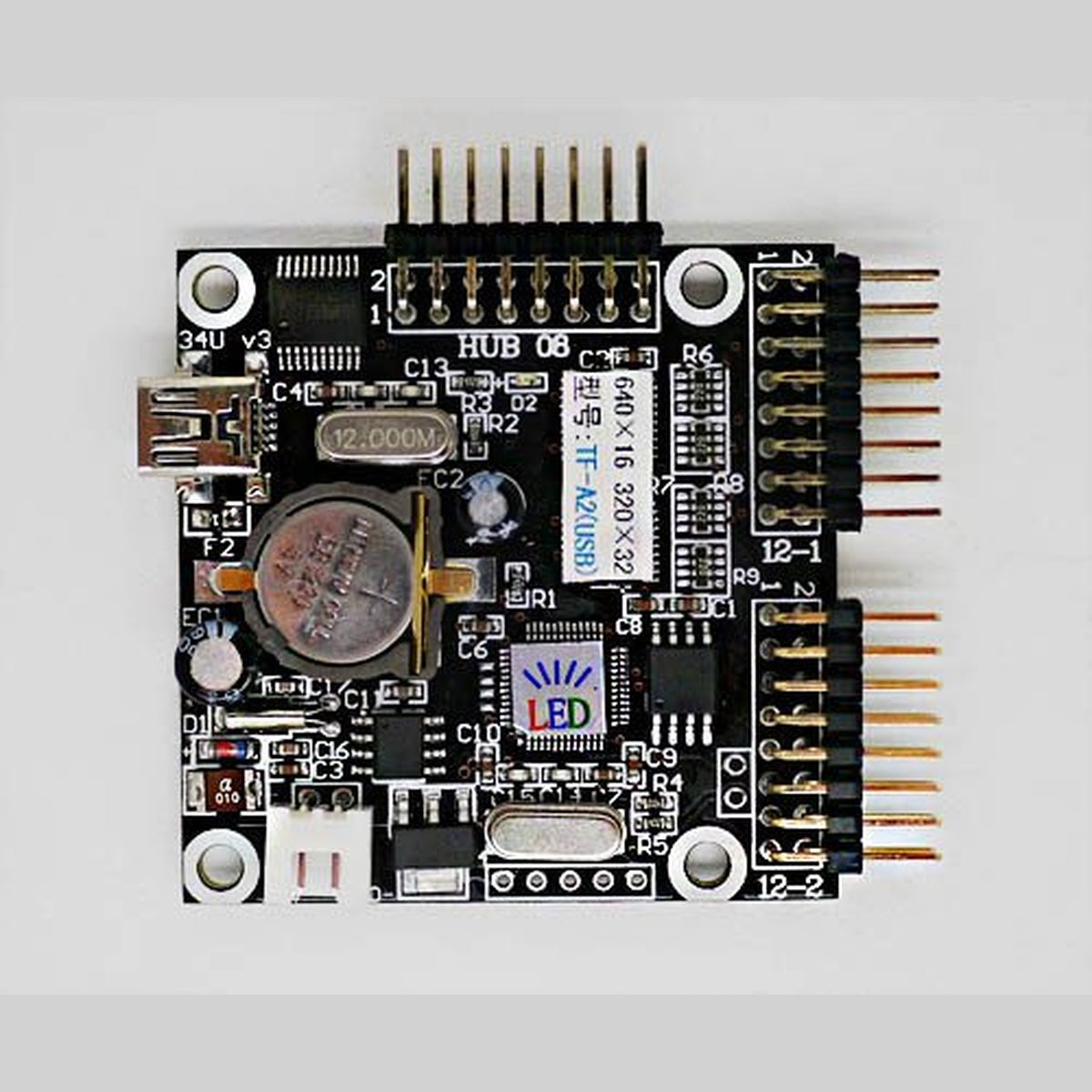

    P10 LED Display Module Control Card TF-A2 (USB Small)

    P10 LED Display Module Control Card TF-A2 (USB Small)

    259.00 TRY
    0.00 TRY 259.00 TRY
    Sale Sold out
    Taxes included.
    • Model
    • TF-A2
    • Communication Port
    • Crosswise RS232 serial port
    • Limit 57600,9600 has been set, support auto-match
    • Function Introduction
    • Any zone division, Colorful Borders, LED display asynchronous control card
    • Usage
    • on/off
    • stopwatch
    • HH/MM/SS, Clock frame embedded
    • Pixels
    • Single color 320*32; 640*16;
    • Dual color 160*32; 320*16;
    • Ports
    • 1 pc T-08 Port; 2 pcs T-12 Ports
    • Scanning mode
    • Supports 1/16,1/8,1/4,1/2 Scan and static single color and dual color module.
    • Storage
    • Program capacity
    • Max 200 Programs, supports 16 display areas at same time per program, each area supports max 200 messages display.
    • Display
    • rain, fountain, scroll etc.
    • Border
    • support color border, picture border
    • Flash format
    • Support GIF, SWF
    • Image format
    • support BMP, JPG, GIF, WMF, ICO
    • Brightness
    • 16 levels, support manual adjustment
    • Screen switch
    • manual on/off
    • Test button
    • Integrated test buttons, can adjust test model
    • Function expansion
    • RF wireless modular, temperature and humidity sensor
    • Electrical parameters
    • +5V DC (4.5V~6V), Power consumption <0.2W
    • Operating temperature
    • -30°C~70°C
