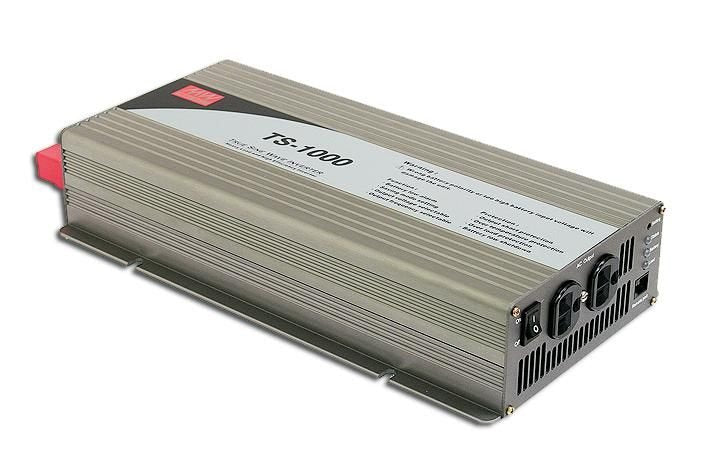

TS-1000-212 12VDC / 1000W Pure Sine Wave Inverter Mean Well

TS-1000-212 12VDC / 1000W Pure Sine Wave Inverter Mean Well Mean Well pure sine wave inverters, TS1000 series 1000W Mean Well inverters are inverters that provide a true sine wave output and can handle an instantaneous power of 2000W. They have an efficiency of up to 92%. They offer high reliability with battery voltage rating, output load level, high temperature, short circuit, overload, and reverse polarity protections. With 12V, 24V, and 48V options, they find use in many areas. GENERAL FEATURES What is the difference between Pure Sine Wave Inverters and other inverters?

• Model
• TS1000
• Power
• 1000 W
• Maximum Power
• 1150 W (180 sec) / 1500 W (10 sec)
• Surge Power
• 2000 W (30 cycles)
• Input Voltage
• 12VDC / 24VDC / 48VDC
• Output Voltage
• 200V / 220V / 230V / 240VAC
• Efficiency
• % 88-92
• Frequency
• 50 / 60 Hz
• Total Harmonic Distortion (THD)
• < %3
• Output Waveform
• Pure Sine Wave
• Dimensions (W x D x H)
• 345 x 184 x 70 mm
• Weight
• 4.3 kg
• Certifications
• EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
• Pure sine wave output ensures problem-free operation with inductive loads.
• Suitable for vehicles, boats, solar-wind energy, professional applications.
• Suitable for heavy loads such as air conditioners, refrigerators, compressors, microwave ovens, hair dryers, vacuum cleaners.
• High surge capability for loads with high starting current.
• Automatic shutdown in case of overload, high temperature, low-high battery voltage.
• Front panel display indicating operating status.
• Short circuit protection.
• Automatic shutdown feature prevents the battery from completely discharging.
• Power saving feature prevents unnecessary battery usage.
• Audible alarm for automatic shutdowns due to over temperature or low battery voltage.
• Load-controlled cooling fan.
• Remote Control (Optional).
• Pure sine wave is the same output you get from the mains grid at home.
• It is very clean, smooth, and the best.
• Therefore, you can use it seamlessly in all applications.
• Your devices heat up less. If you are going to operate motors, air conditioners, refrigerators as a load, or for industrial devices and applications, a pure sine wave inverter is definitely recommended.
