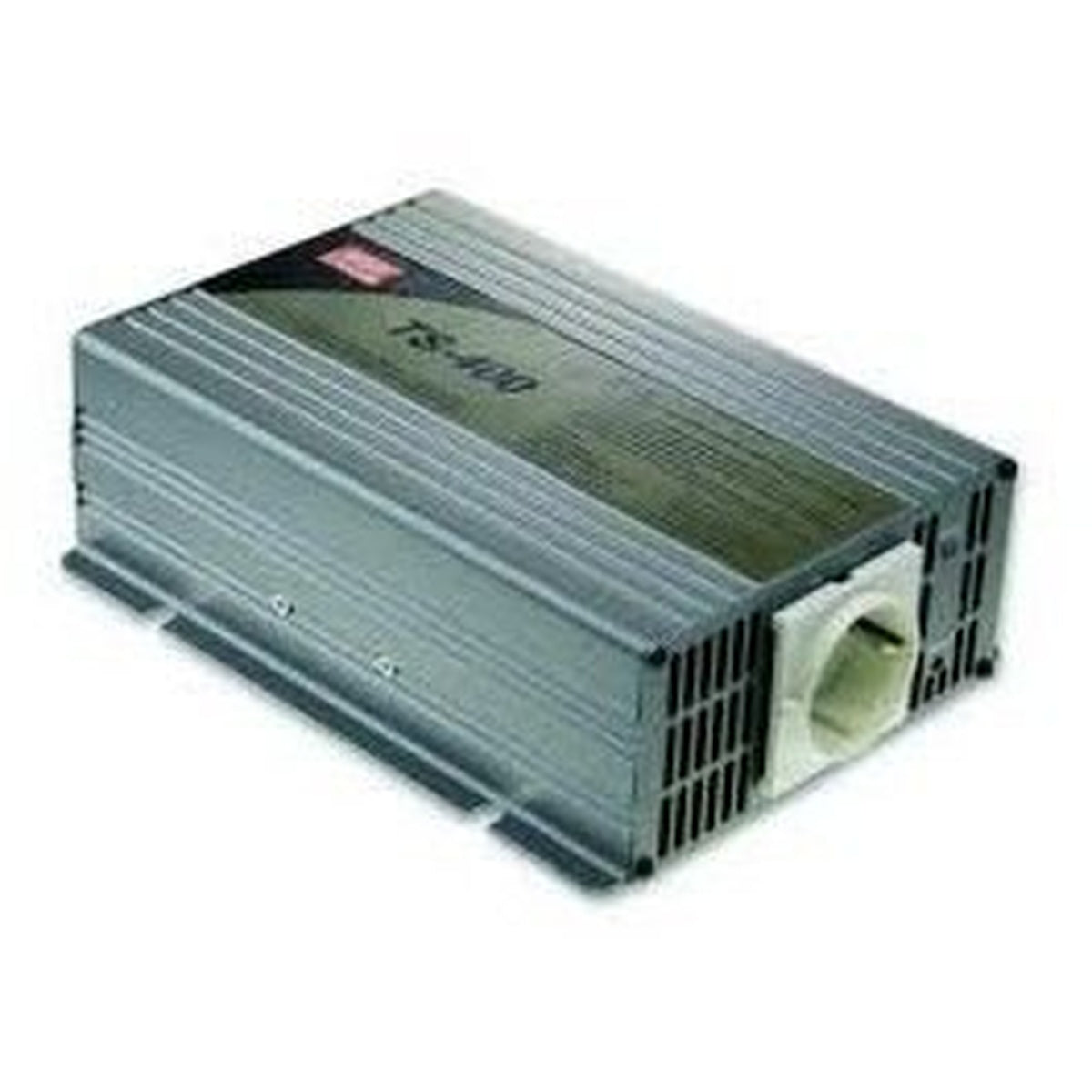

TS-400-212 12VDC / 400W True Sine Wave Inverter Mean Well

TS-400-212 12VDC / 400W Pure Sine Wave Inverter Mean Well Mean Well pure sine wave inverters from the TS400 series are 400W Mean Well inverters that provide true sine wave output and can handle instantaneous power up to 800W. They have an efficiency of up to 92%. They offer high reliability with protections for battery voltage level, output load level, high temperature, short circuit, overload, and reverse polarity. Available in 12V, 24V, and 48V options, they are suitable for various applications. GENERAL FEATURES What is the difference between pure sine wave inverters and other inverters?

• Model
• TS400
• Power
• 400 W
• Maximum Power
• 450 W (180 sec) / 1500 W (10 sec)
• Surge Power
• 800 W (30 cycles)
• Input Voltage
• 12VDC / 24VDC / 48VDC
• Output Voltage
• 200V / 220V / 230V / 240VAC
• Efficiency
• 88-92%
• Frequency
• 50 / 60 Hz
• Total Harmonic Distortion (THD)
• < 3%
• Output Waveform
• Pure Sine Wave
• Dimensions (W x D x H)
• 225*136*67mm
• Weight
• 3 kg
• Certifications
• EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
• Pure sine wave output ensures problem-free operation with motor loads.
• Suitable for vehicles, boats, solar-wind energy, and professional applications.
• Suitable for heavy loads such as air conditioners, refrigerators, compressors, microwave ovens, hair dryers, and vacuum cleaners.
• High surge capability for loads with high starting current.
• Automatic shutdown in case of overload, over-temperature, low-high battery voltage.
• Front panel indicator showing operational status.
• Short circuit protection.
• Automatic shutdown feature prevents complete battery discharge.
• Power saving feature prevents unnecessary battery use.
• Audible alarm for automatic shutdowns due to over-temperature or low battery voltage.
• Load-controlled cooling fan.
• Remote Control (Optional).
• Pure sine wave output is the same as the power you get from the mains at home.
• It is very clean, smooth, and the best.
• Therefore, you can use it seamlessly in all applications.
• Your devices will run cooler. If you are going to run motors, air conditioners, refrigerators as a load, or for industrial devices and applications, a pure sine wave inverter is definitely recommended.
