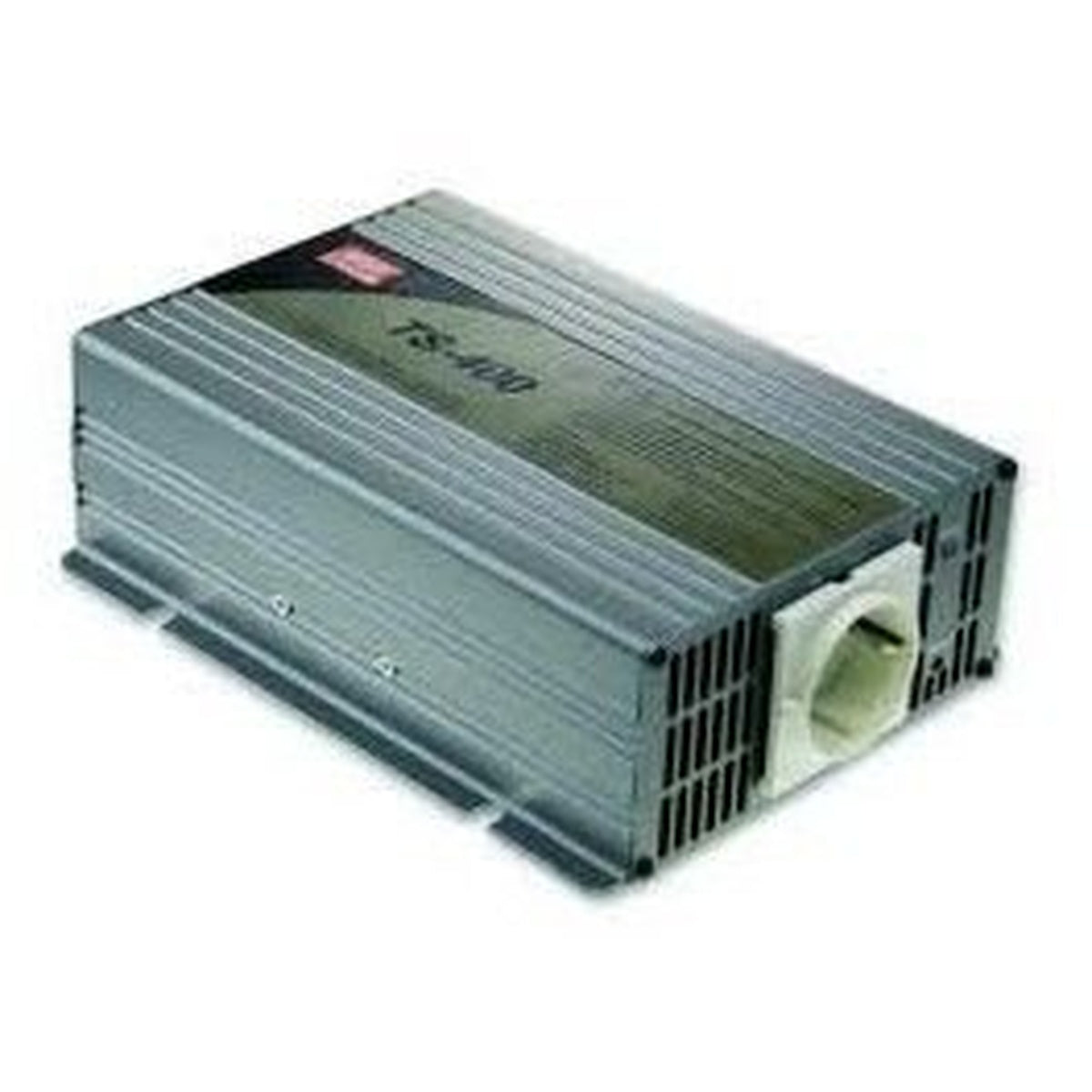

TS-400-224 24VDC / 400W Pure Sine Wave Inverter Mean Well

TS-400-224 24VDC / 400W Pure Sine Wave Inverter Mean Well Mean Well pure sine wave inverters, TS400 series 400W Mean Well inverters are inverters that provide true sine wave output and can handle an instantaneous power of 800W. They have an efficiency of up to 92%. They offer high reliability with protections for battery voltage level, output load level, high temperature, short circuit, overload, and reverse polarity. With 12V, 24V, and 48V options, they find use in many areas. GENERAL FEATURES What is the difference between Pure Sine Wave Inverters and other inverters?

• Model
• TS400
• Power
• 400 W
• Maximum Power
• 450 W (180 sec) / 1500 W (10 sec)
• Surge Power
• 800 W (30 cycles)
• Input Voltage
• 12VDC / 24VDC / 48VDC
• Output Voltage
• 200V / 220V / 230V / 240VAC
• Efficiency
• % 88-92
• Frequency
• 50 / 60 Hz
• Total Harmonic Distortion (THD)
• < %3
• Output Waveform
• Pure Sine
• Dimensions (W x D x H)
• 225*136*67mm
• Weight
• 3 kg
• Certifications
• EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
• Pure sine wave output ensures trouble-free operation with motor loads.
• Suitable for vehicles, boats, solar-wind energy, and professional applications.
• Suitable for heavy loads such as air conditioners, refrigerators, compressors, microwave ovens, hair dryers, and vacuum cleaners.
• High surge capability for loads with high starting current.
• Automatic shutdown in case of overload, over-temperature, low-high battery voltage.
• Front panel indicator showing operating status.
• Short circuit protection.
• Automatic shutdown prevents complete discharge of the battery.
• Power saving feature prevents unnecessary battery use.
• Audible alarm for automatic shutdowns due to over-temperature or low battery voltage.
• Load-controlled cooling fan.
• Remote Control (Optional).
• Pure sine wave is the same output you get from the mains at home.
• It is very clean, smooth, and the best.
• Therefore, you can use it seamlessly in all applications.
• Your devices will run cooler. If you are going to run motors, air conditioners, refrigerators as loads, or for industrial devices and applications, a pure sine wave inverter is definitely recommended.
