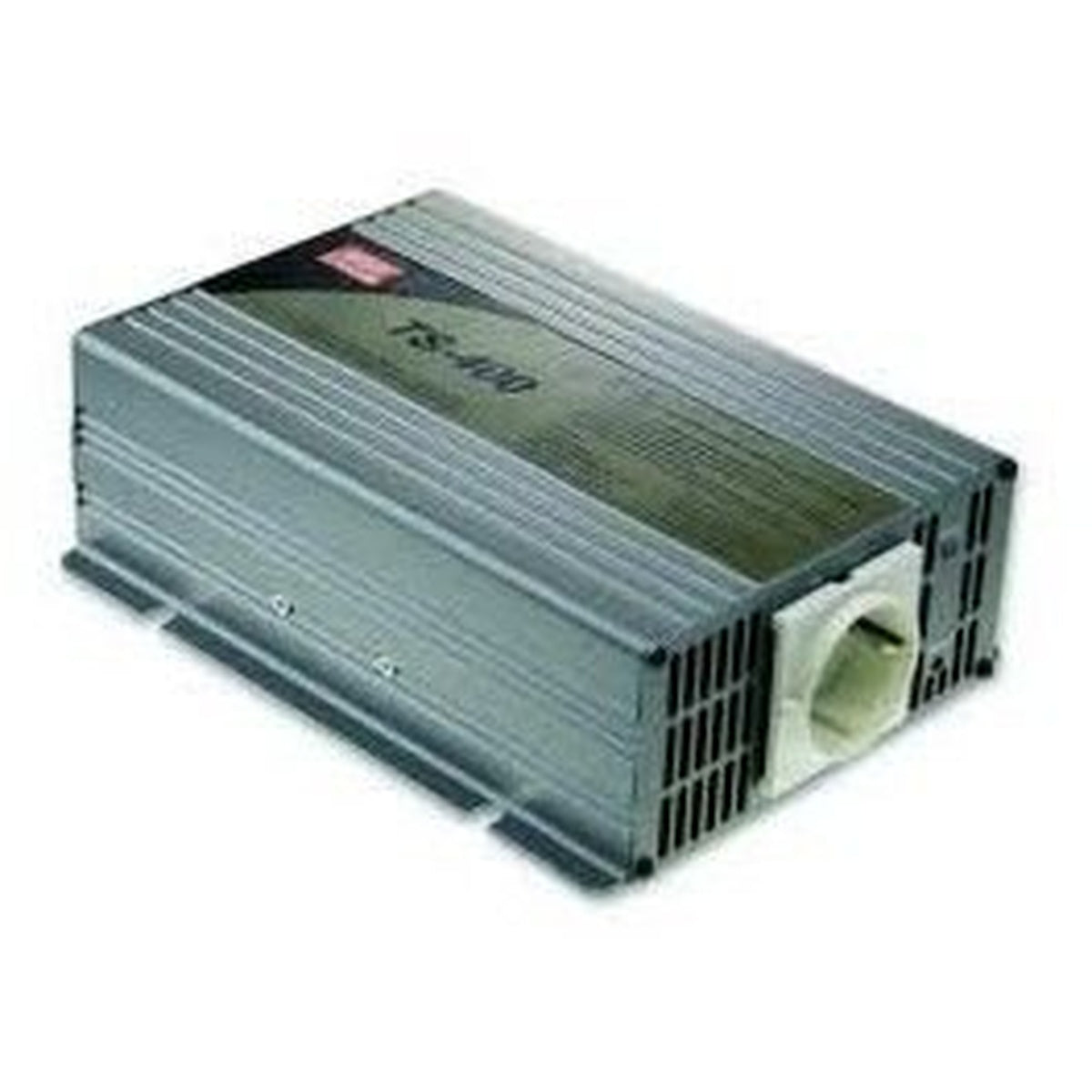

TS-400-248 48VDC / 400W True Sine Inverter Mean Well

TS-400-248 48VDC / 400W Pure Sine Wave Inverter Mean Well Mean Well pure sine wave inverters TS400 series 400W Mean Well inverters are inverters that provide real sine wave output and can handle 800W instantaneous power. They have an efficiency of up to 92%. They offer high reliability with battery voltage rating, output load level, high temperature, short circuit, overload and reverse polarity protections. With 12V, 24V and 48V options, they are used in many areas. GENERAL FEATURES What is the difference between Pure Sine Wave Inverters and other inverters?

• Model
• TS400
• Power
• 400 W
• Maximum Power
• 450 W (180 sec) / 1500 W (10 sec)
• Surge Power
• 800 W (30 cycles)
• Input Voltage
• 12VDC / 24VDC / 48VDC
• Output Voltage
• 200V / 220V / 230V / 240VAC
• Efficiency
• 88-92%
• Frequency
• 50 / 60 Hz
• Total Harmonic Distortion (THD)
• < 3%
• Output Waveform
• Pure Sine Wave
• Dimensions (W x D x H)
• 225*136*67mm
• Weight
• 3 kg
• Certificates
• EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
• Pure sine wave output ensures problem-free operation with motor loads.
• Suitable for vehicles, boats, solar-wind energy, professional applications.
• Suitable for heavy loads such as air conditioners, refrigerators, compressors, microwave ovens, hair dryers, vacuum cleaners.
• High surge capability for loads with high starting current.
• Automatic shutdown in case of overload, over temperature, low-high battery voltage.
• Front panel indicator showing operational status.
• Short circuit protection.
• Automatic shutdown feature prevents complete battery discharge.
• Power saving feature prevents unnecessary battery usage.
• Audible alarm for automatic shutdowns due to over temperature or low battery voltage.
• Load-controlled cooling fan.
• Remote Control (Optional).
• A pure sine wave is the same output you get from the mains at home.
• It is very clean, smooth, and the best.
• Therefore, you can use it seamlessly in all applications.
• Your devices will run cooler. If you are going to run motors, air conditioners, refrigerators, or for industrial devices and applications, a pure sine wave inverter is definitely recommended.
