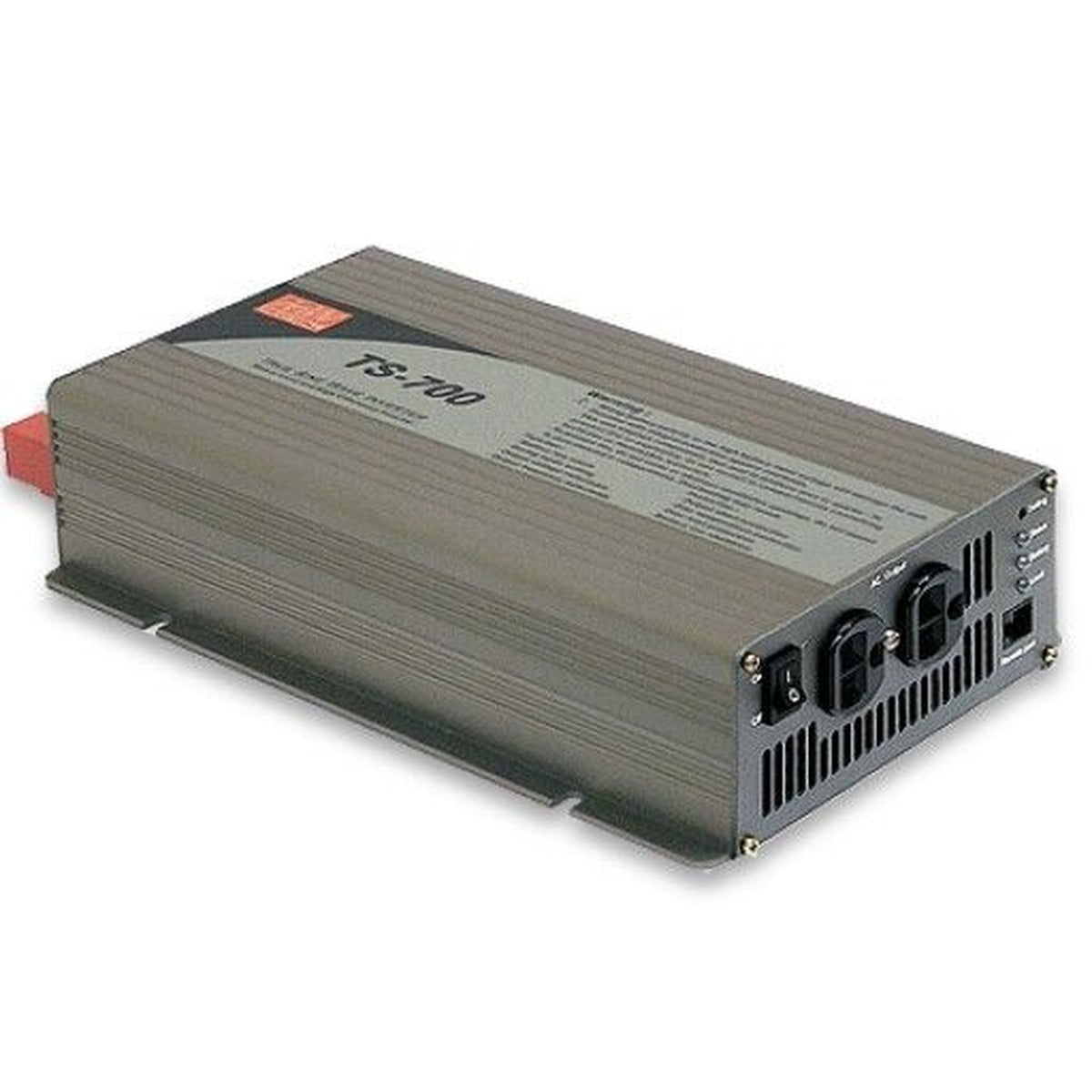

TS-700-212 12VDC / 700W Pure Sine Wave Inverter Mean Well

TS-700-212 12VDCC / 700W Pure Sine Wave Inverter Mean Well Mean Well pure sine wave inverters from the TS700 series are 700W Mean Well inverters that provide a true sine wave output and can handle an instantaneous power of 1400W. They have an efficiency of up to 92%. With battery voltage rating, output load level, high temperature, short circuit, overload, and reverse polarity protection, they offer high reliability. Available in 12V, 24V, and 48V options, they are suitable for use in many areas. GENERAL FEATURES What is the difference between pure sine wave inverters and other inverters?

• Model
• TS700
• Power
• 700 W
• Maximum Power
• 800 W (180 sec) / 1500 W (10 sec)
• Surge Power
• 1400 W (30 cycles)
• Input Voltage
• 12VDC / 24VDC / 48VDC
• Output Voltage
• 200V / 220V / 230V / 240VAC
• Efficiency
• % 88-92
• Frequency
• 50 / 60 Hz
• Total Harmonic Distortion (THD)
• < %3
• Output Waveform
• Pure Sine Wave
• Dimensions ( W x D x H )
• 345 x 184 x 70 mm
• Weight
• 4.3 kg
• Certificates
• EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
• Pure sine wave output ensures trouble-free operation with motor loads.
• Suitable for vehicles, boats, solar-wind energy, and professional applications.
• Suitable for heavy loads such as air conditioners, refrigerators, compressors, microwave ovens, hair dryers, and vacuum cleaners.
• High surge capability for loads with high starting current.
• Automatic shutdown in case of overload, over-temperature, low-high battery voltage.
• Front panel indicator showing operational status.
• Short circuit protection.
• Automatic shutdown feature prevents complete discharge of the battery.
• Power saving feature prevents unnecessary battery usage.
• Audible alarm for automatic shutdowns due to over-temperature or low battery voltage.
• Load-controlled cooling fan.
• Remote Control (Optional).
• A pure sine wave is the same output you get from the grid at home.
• It is very clean, smooth, and the best.
• Therefore, you can use it without problems in all applications.
• Your devices will run cooler. If you are going to run motors, air conditioners, refrigerators, or industrial devices and applications as a load, a pure sine wave inverter is definitely recommended.
