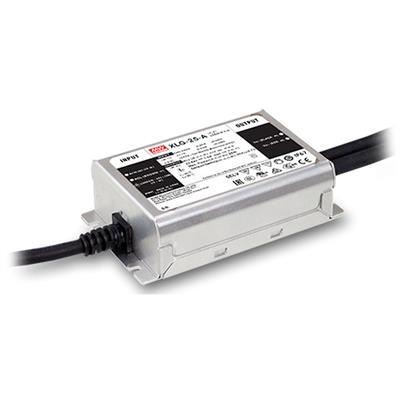

    XLG-25-A 22~54Vdc,250~1050mA ADJ Meanwell

    XLG-25-A 22~54Vdc,250~1050mA ADJ Meanwell

    886.38 TRY
    0.00 TRY 886.38 TRY
    Sale Sold out
    Taxes included.
    • XLG-25 Constant Current
    • SPECIFICATION
    • Model
    • XLG-25
    • Output
    • Rated Current
    • 700mA
    • Constant Current Region
    • 22-54V
    • Rated Power
    • 90VAC-305VAC
    • 25W
    • Current Ripple
    • 5.0% max. @rated current
    • Open Circuit Voltage (Max.)
    • 57V
    • Current ADJ. Range
    • 0.25-1.05A
    • Case Size: 105*63*30mm
    • (L*W*H)
    • Type
    • Function
    • Io adjustable via built-in potentiometer
    • Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance)
