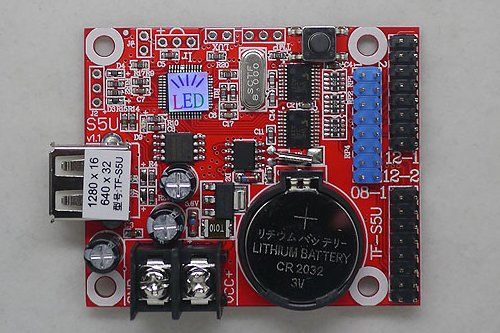

TF-S5U P10 PANEL KONTROL KARTI

Batch supply

Function introduction Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.

Usage indoor/outdoor

USB function: USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.

Pixel Single colour:1280x16,640x32

Double colour:640x16,320x32

Ports one 08 port;two 12 ports

Scanning mode support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.

Storage 2M

Program number Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）

Display rain,fountain,scroll and much more

Border support many Color border,Picture border

Flash format support GIF,SWF

Image format support BMP,JPG,GIF,WMF,ICO

Brightness Level 16 highlighted,support manual

screen switch manual

Test buttons Test buttons on-board,can switch over to test mode and color test mode.

Extension function: Temperature sensor,Temperature&humidity sensor,Brightness sensor.(Diagram for connection)

Electrical parameters +5V DC(4.5V～6V),Power consumption<0.5W

Working temperature -30℃～70℃

Size 60mm*50mm
