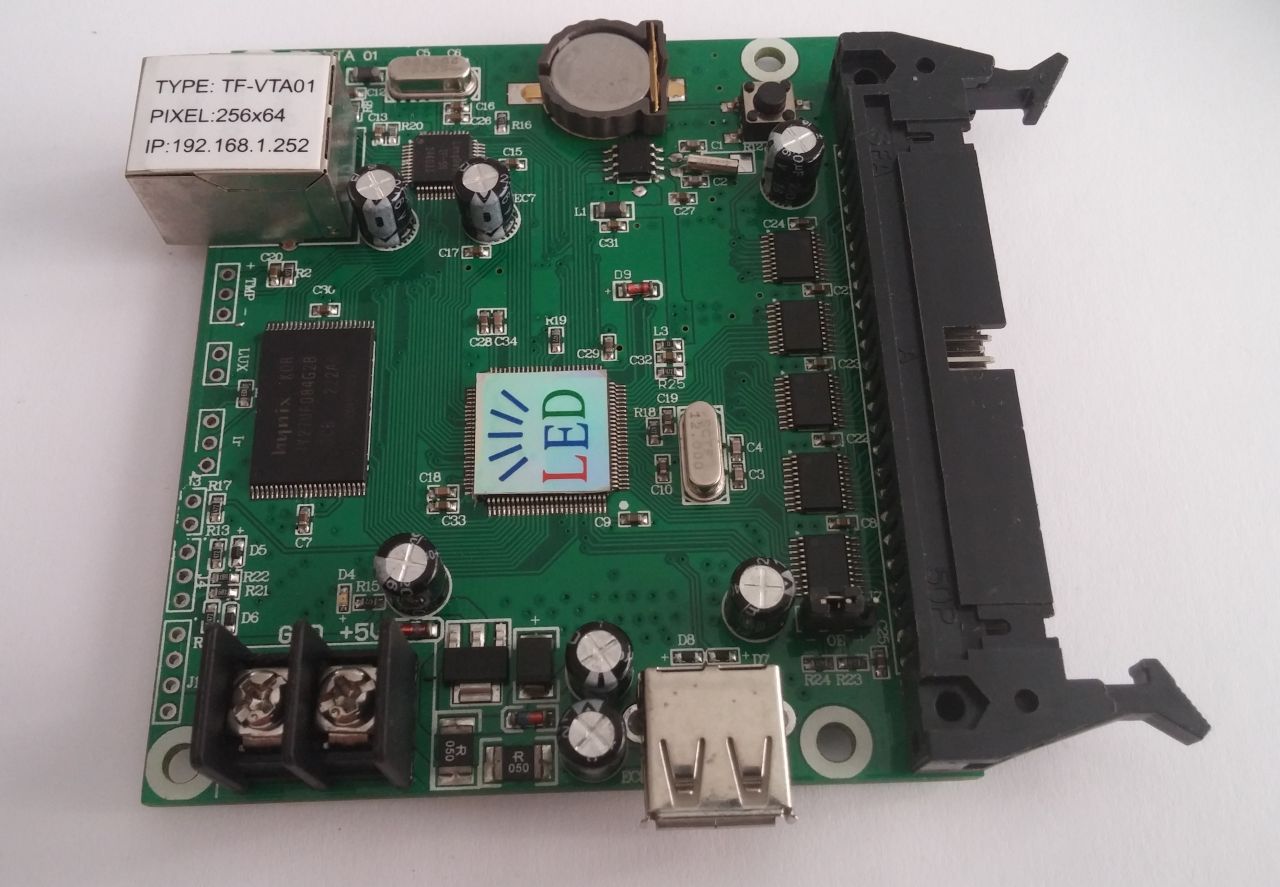

TF-VTA P10 PANEL KONTROL KARTI

Technical parameters

Model

TF-VTA01(support 16 multi- zones display)



Communication port

USB driver+LAN/Enthernet port,support LAN/enthernet port automatic searching,support U disk program updates



USB driver function

U disk program update, U disk brightness adjustment, U disk setting making program. Can be stored as a file format and do not effect the original document. SD card/mini-SD card is Compatible when using USB.



Network function

Support network automatic searching. Default IP:192.168.1.252 (With router,IP can be searched automaticly),10M/100M auto adjust



Function introduction

Multi-area display, Colorful Borders, multi-function LED display asynchronous control card



Usage

indoor/outdoor



Timer

HH/MM/SS , Analog Clock, timing,countdown,clock. Font size can be adjustable,time zone setting is acceptable. Support multiple time zones display



Pixel

Full color: 256x64 @ 24bit true color; 256x128 @ 4096 colors



Double color: 192x128 @ 24bit true color; 384x128 @ 4096 colors



Ports

1 group of 50pin



Scanning mode

support 1/16,1/8,1/4, 1/2,;support static scan of single color and double color module.



Storage

512M



Program capacity

Maximum 200 Programs, each programsupports 16multi-zones simultaneous display,each image-text supports max 200 messages



Display

rain, fountain, scroll, etc.45 kinds in all.



Border

support various colorful borders & customized image borders



Media/Image format

support images and videos ( BMP,JPG,GIF,WMF,ICO,AVI,MP4,MPG,RMVB......)



Brightness

16 levels, support manual adjustment;support 6 fixed times brightness adjustments



Expanded function

Temperature,Temperature&humidity,Auto brightness



Screen switch

manual on/off, support 4 fixed times screen switch setting



Test button

test buttons on-board, can switchover to test mode and color test mode



Not: Ürün test edilerek gönderilmektedir. Kablolama ve adaptör voltajlarına dikkat ediniz. Ters yönde voltaj verilmesinde ve 5 volt üzerinde voltaj verildiğinde arızalanır. Geri iadesi ve garantisi yoktur. Uygun şartlarda kullanıldığında uzun ömürlüdür.
