Powermax Led

XLG-200-24-A 24Vdc 8.3Amp ADJ Meanwell

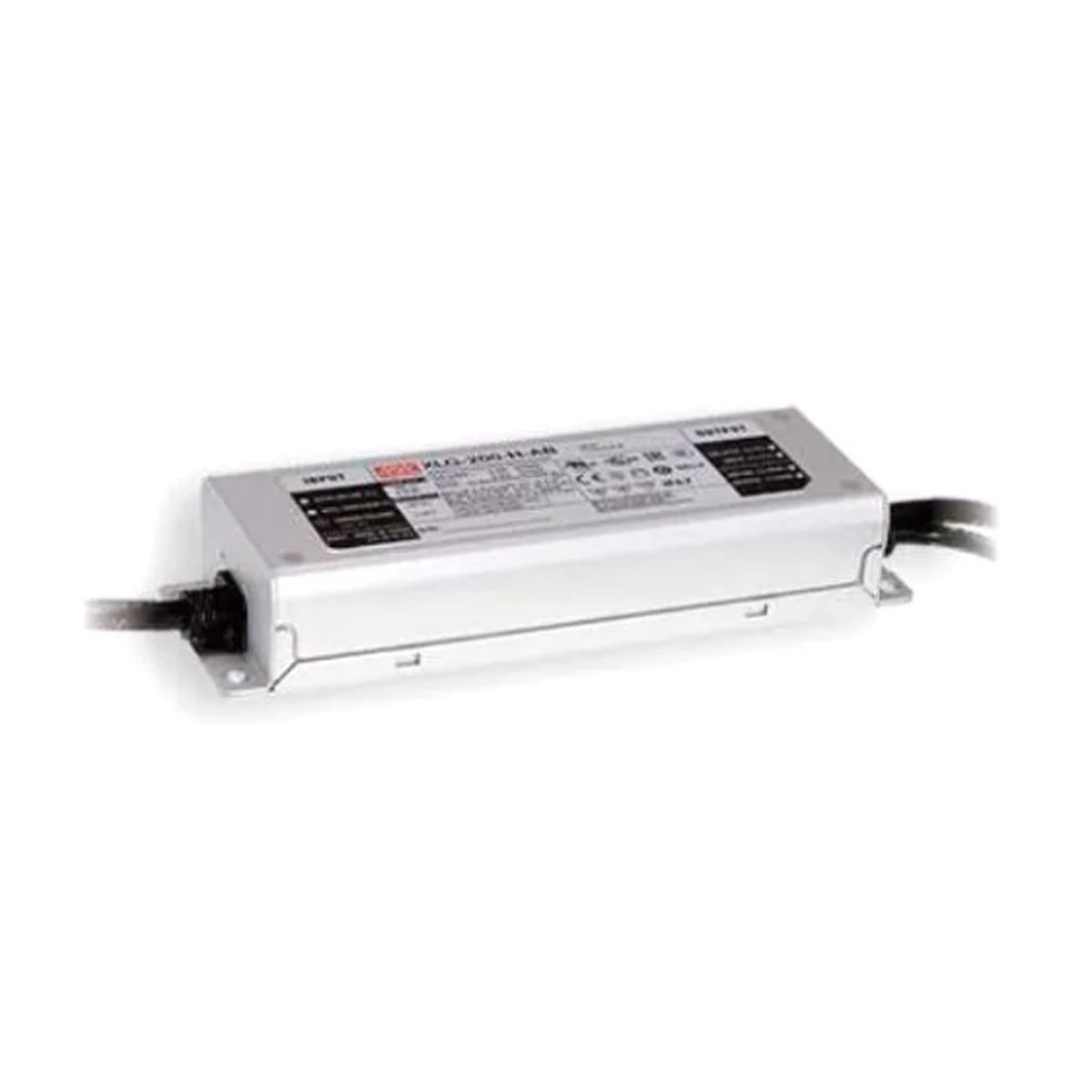

Name: XLG-200-24-A 24Vdc 8.3Amp ADJ Meanwell
Brand: Powermax Led
SKU: XLG-200-24-A
Price: 1585.76 TRY
Availability: InStock

₺1,585.76TL

~~₺0.00TL~~ ₺1,585.76TL

İndirim Tükendi

Vergi dahildir.

Ürün varyasyonları

Adet

Model		XLG-200-24
Output	DC VOLTAGE	24V
	Constant Current Region	16.8-24V
	Rated Current	8.3A
	Rated Power	199.2W
	Ripple & Noise (max.)	240mVp-p
	Current ADJ. Range	4.15A-8.3A Adjustable for A/AB-Type only (via the built-in potentiometer)

Kasa
Ölçüsü: 199*63*36mm

(L*W*H)

Type	Function
A	Io adjustable via built-in potentiometer
AB	Io adjustable via built-in potentiometer + 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance)
Blank	Io and Vo fixed. (For harsh envirenment)
Note:	12V and 24V models without the AB Type
